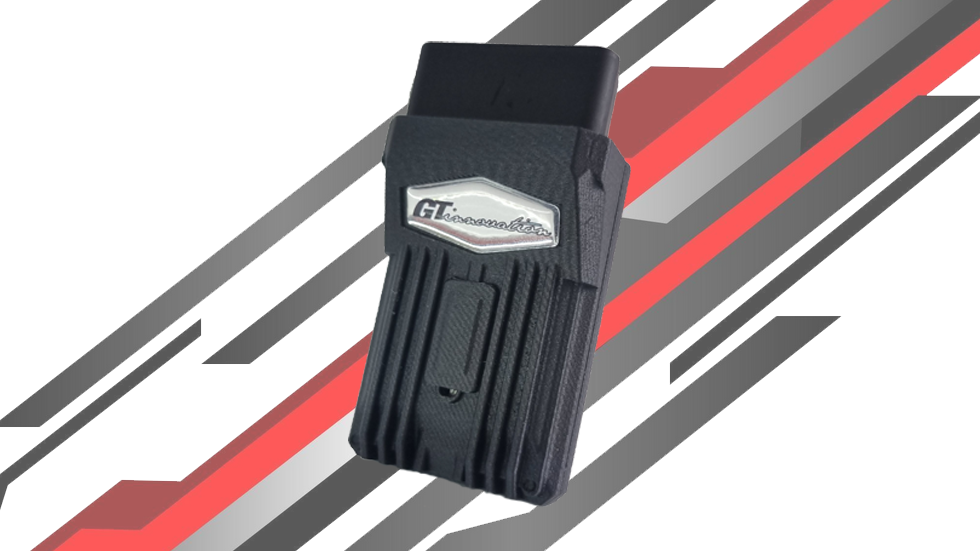

Gt-flasher dongle v2.0

This is our USB / Bluetooth OBD2 Flasher that will allow our Windows / Android / iOS applications to reflash / diagnose and datalog your vehicle. Gt-flasher comes along with all of our packages and combos but can be also bought separately as spare or replacement unit.

Once you purchase the Gt-flasher you can visit and register at our portal and start having fun : https://portal.gt-innovation.com

Detailed Description

In our relentless pursuit of perfection, we have left no stone UN-turned when it comes to enhancing every facet and process involved in engine or gearbox management system flashing and reprogramming.

To transcend the limitations inherent in existing market tools, we've taken matters into our own hands, crafting our own hardware and firmware to create an OBD CAN interface that's not only powerful but also exceptionally robust.

ECU Flashing: The Gt-Flasher Interface allows users to connect their computer to a vehicle's ECU and read/write data to it. This is commonly used for performance tuning, where the ECU's software is modified to optimize engine performance or make other changes.

Data Logging: It can be used for real-time data logging, allowing users to monitor various parameters of the engine's performance while the vehicle is running. This is valuable for diagnosing issues or fine-tuning engine performance.

Diagnosis and Troubleshooting: The Gt-flasher can be used to diagnose and troubleshoot engine and vehicle-related problems. It can read error codes (DTCs - Diagnostic Trouble Codes) from the ECU and provide valuable information for identifying issues.

Technical Characteristics

• Connectivity: Micro USB / BLE / WIFI
• Wireless operating frequency: 2.4 GHZ (-12 ~ 9 dBm)
• Operating Voltage: 12v (OBD) / 5v (Micro Usb connector) 600mA
• Enclosure Material: PLA

Application Compatibility list for use with Gt-flasher Dongle

A more detailed vehicle compatibility list that will help you selecting a communication or flashing protocol manually.

ECU/TCU Types:

MED17.1.1 (2.0l - 2.5l - 4.0l - 5.2l) UDS

MED17.5.21/25 (1.0l - 1.2l - 1.4l)

MED17.1.21/27(1.0l - 1.4l)

MED17.1.62 (2.5l)

MG1CS163 (2.5l)

SIMOS18.1/.2/.6

SIMOS18.10

DQ250/DQ381/DQ500 (Bosch MQB)

DQ200 MQB / G2

DQ500 Continental

DL800 Continental

Engine Management System Continental Simos 18.1 / 2 /6 - MY 2014 - 2018 for 1.8l and 2.0l engines :

• Audi A1 / S1 / A3 / S3 / Q2 / Q3 / TT / TTS
• VW Golf 7 GTI / Clubsport / TCR / R / Passat / Arteon / Tiguan / T-Roc / Polo / Magotan
• Seat Leon / Cupra / Ateca / Ibiza
• Skoda Octavia / Superb / Kodiaq

Engine Management System Continental Simos 18.10 - MY 2019 - 2020 for 1.8l and 2.0l engines :

• Audi A1 / S1 / A3 / S3 / Q2 / Q3 / TT / TTS
• VW Golf 7 GTI / Clubsport / TCR / R / Scirocco / Passat / Arteon / Tiguan / T-Roc / Polo / Magotan
• Seat Leon / Cupra / Ateca / Ibiza
• Skoda Octavia / Superb / Kodiaq / Kamiq

Engine Management System Continental Med17.1.21/27 - MED17.5.21/25 - MY 2014 - 2022 for 1.0l , 1.2l and 1.4l engines :

• Audi A1 / A3 / Q2 / Q3 /
• VW Golf 7 / Passat / Scirocco / Caddy / Tiguan / T-Roc / GTE / T-Cross / Polo / Up / New Beetle / Magotan / Lamando
• Seat Leon / Ateca / Ibiza / Alhambra
• Skoda Octavia / Superb / Kodiaq / Fabia / Rapid

Engine Management System Bosch Med17.1.1 2013 - 2016 for 2.5l/4.0l engines:

• Audi RS3 8V / S4 / S6 / S7 / S8 / RS6 / RS7

Engine Management System Bosch Med17.1.1 2013 - 2020 for 5.2l engines :

• Audi R8 (All models)
• Lamborhini Huracan (all models)

Engine Management System Bosch Med17.1.62 2016 - 2020 for 2.5l

• Audi RS3 8V / TTRS 8S / RSQ3

Engine Management System Bosch MG1CS163 2021-2024 for 2.5l (Pre - Unlocked ecus)

• Audi RS3 8Y / Cupra Formentor (2.5l)

*Note: This list will be updated regularly.Contact us if your model is not present

Software links for :

Microsoft : https://apps.microsoft.com/detail/xpfnz4tndspg61?h...

Android : https://play.google.com/store/apps/details?id=com....

iOS : https://apps.apple.com/at/app/gt-flasher/id6469004...
